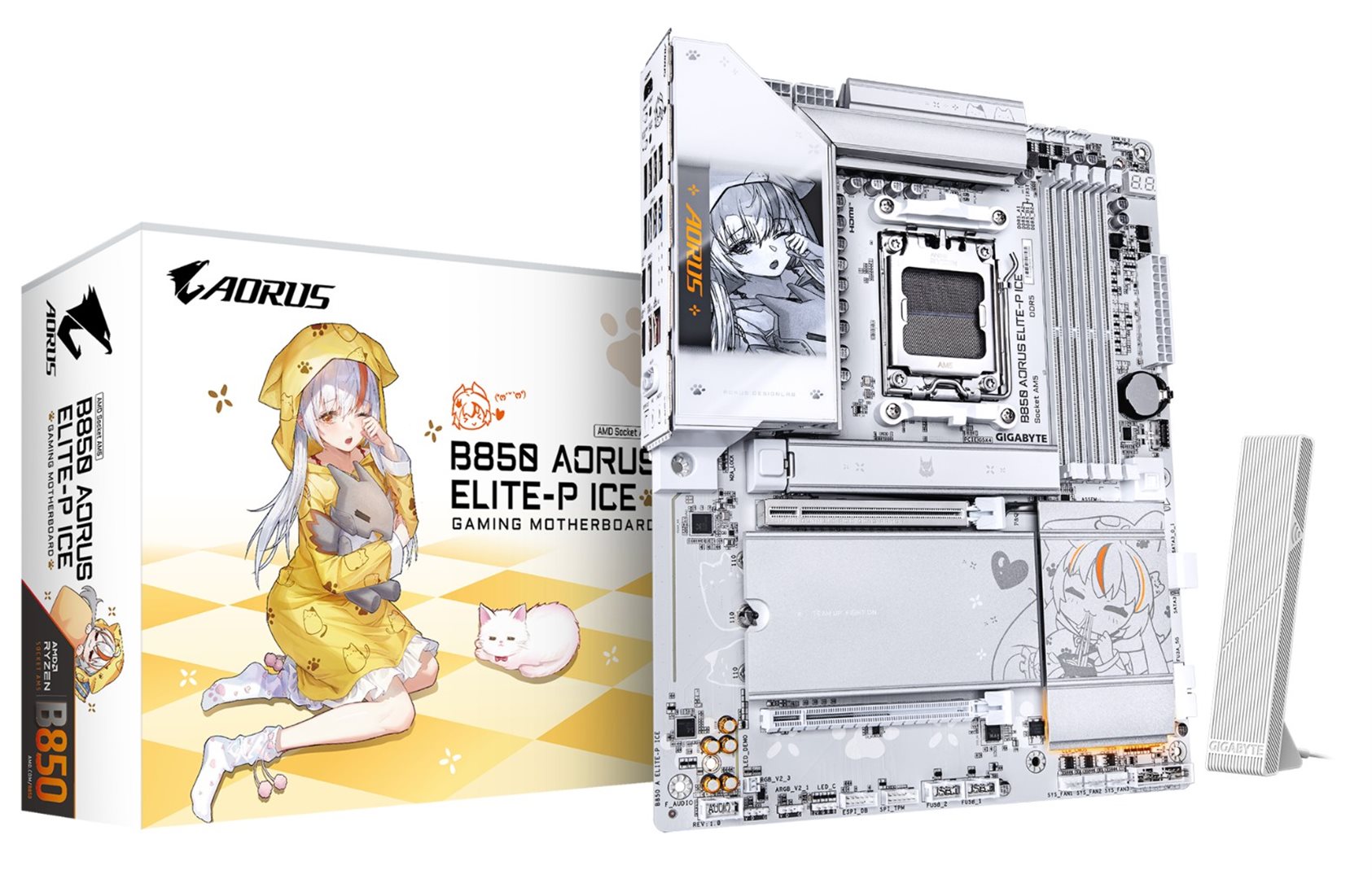

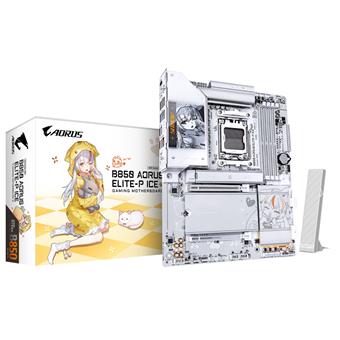

Gigabyte B850 AORUS ELITE-P ICE/ AM5/ ATX

Gigabyte B850 AORUS ELITE-P ICE

Chipset: AMD B850
Rozměrový formát: ATX Form Factor; 30.5cm x 24.4cm
Podpora pro procesory:

• AMD Ryzen 9000 Series Processors
• AMD Ryzen 8000 Series Processors
• AMD Ryzen 7000 Series Processors

Patice procesoru: AM5

Paměť:

• Podpora pro DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
• 4x DDR5 DIMM sloty podporující až 256GB (64GB každý slot) paměti
• Dual channel memory architecture
• Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly
• Podpora pro AMD EXPO a XMP moduly

Grafické porty:

Integrated Graphics Processor with AMD Radeon™ Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Zvuková karta:

Realtek® ALC1220 CODEC

• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Ethernet: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
WLAN + Bluetooth: Realtek® Wi-Fi 7 RTL8922AE

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 160MHz wireless standard

Rozšiřující sloty:

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Chipset

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný prostor:

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

2 x SATA 6Gb/s connectors

USB:

CPU:

•  2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU+USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on the back panel

Chipset:

• 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports on the back panel

Interní porty:

Napájení

• 1× 24-pin ATX main power connector
• 2× 8-pin ATX 12V power connectors
• 1× CPU fan header
• 1× CPU fan / water cooling pump header
• 3× system fan headers
• 1× system fan / water cooling pump header

Související s úložištěm

• 4× M.2 Socket 3 connectors
• 2× SATA 6Gb/s connectors

USB

• 1× USB Type-C header, USB 3.2 Gen 2x2
• 1× USB 3.2 Gen 1 header
• 2× USB 2.0/1.1 headers

Ostatní

• 3× addressable RGB Gen2 LED strip headers
• 1× RGB LED strip header
• 1× front panel header
• 1× front panel audio header
• 1× Trusted Platform Module header
• 1× reset jumper
• 1× Clear CMOS jumper

Porty na zadním panelu:

• 1 x HDMI port (Note)
• 1 x reset button
• 1 x power button
• 1 x Clear CMOS button
• 1 x Q-Flash Plus button
• 4 x USB 2.0/1.1 ports
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x USB Type-C® ports, with USB 3.2 Gen 2 support
• 1 x RJ-45 port
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

BIOS:

• 1 x 512 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorování:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

OS: Podpora pro Windows 11 64-bit
